SPECMOTOR reference SM-MAG-001

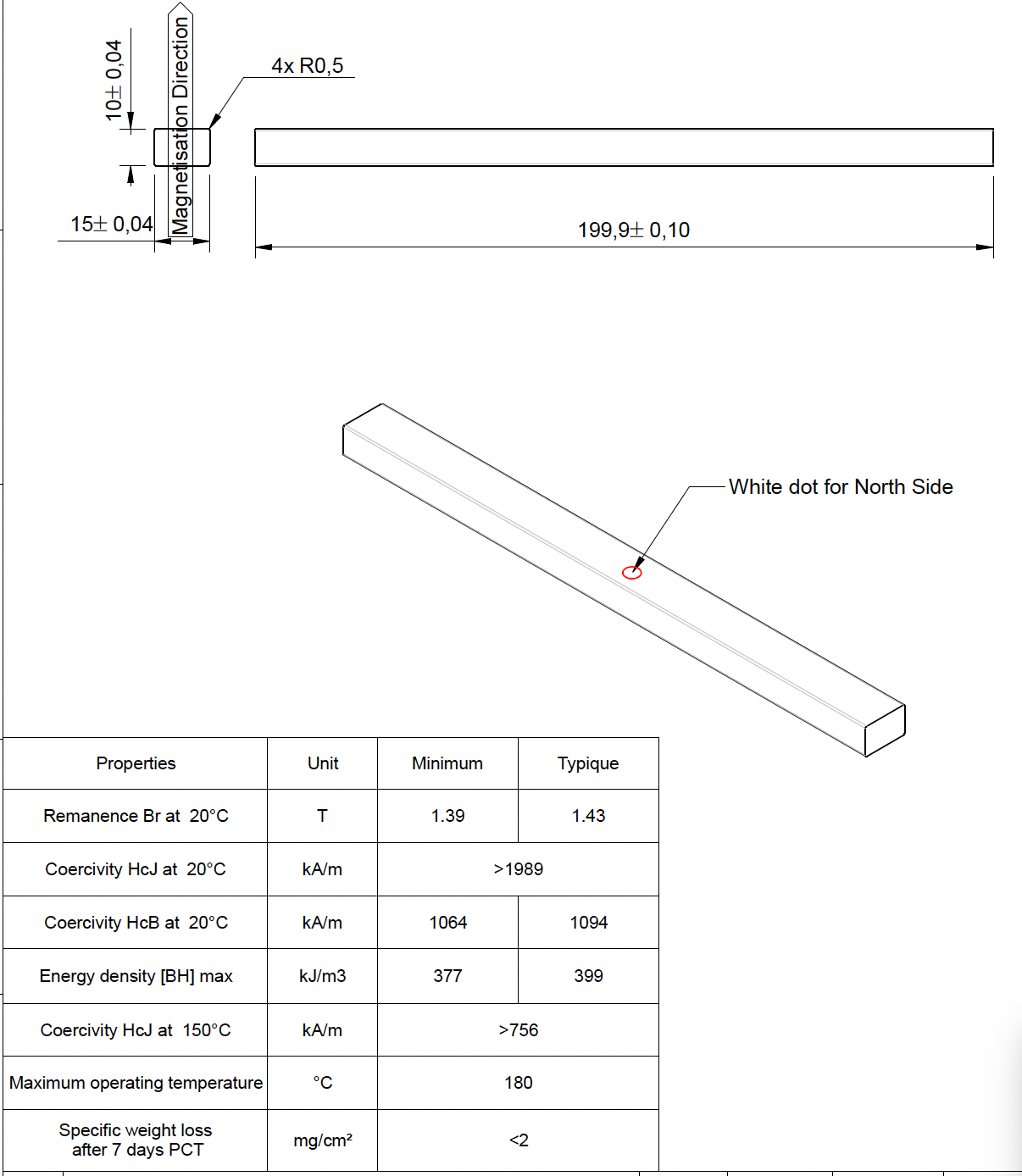

Rectangular permanent magnet 199.9 × 15 × 10 mm — 180°C
Permanent magnet with an epoxy coating, magnetisation through the 10 mm thickness and a white dot identifying the North face.
The material grade is intentionally not disclosed. The guaranteed performance figures below are those stated in the available documentation.
Technical data
Available characteristics
| Characteristic | Minimum | Typical / value |
|---|---|---|
| Remanence Br at 20°C | 1.39 T | 1.43 T |
| Intrinsic coercivity HcJ at 20°C | > 1,989 kA/m | — |
| Coercivity HcB at 20°C | 1,064 kA/m | 1,094 kA/m |
| Maximum energy product [BH]max | 377 kJ/m³ | 399 kJ/m³ |
| Intrinsic coercivity HcJ at 150°C | > 756 kA/m | — |
| Maximum operating temperature | — | 180 °C |
| Specific mass loss after 7-day PCT | — | < 2 mg/cm² |
| Coating | — | Epoxy |
| Magnetisation direction | — | Through the 10 mm thickness |
| Polarity marking | — | White dot on the North face |
The buyer must validate the characteristics for the intended application, environment and assembly conditions. The maximum temperature alone does not guarantee performance under all conditions.
Sale conditions
A special offer, not a permanent range
This stock was sourced for a project that did not proceed. The magnets are offered while remaining quantities last.
- Available quantity: approximately 500 units
- Lot sizes and packaging: specified in the quotation
- Transport: defined according to destination and handling requirements
- Additional documentation: provided subject to availability and confidentiality
Request a quotation
Pre-filled reference: SM-MAG-001
